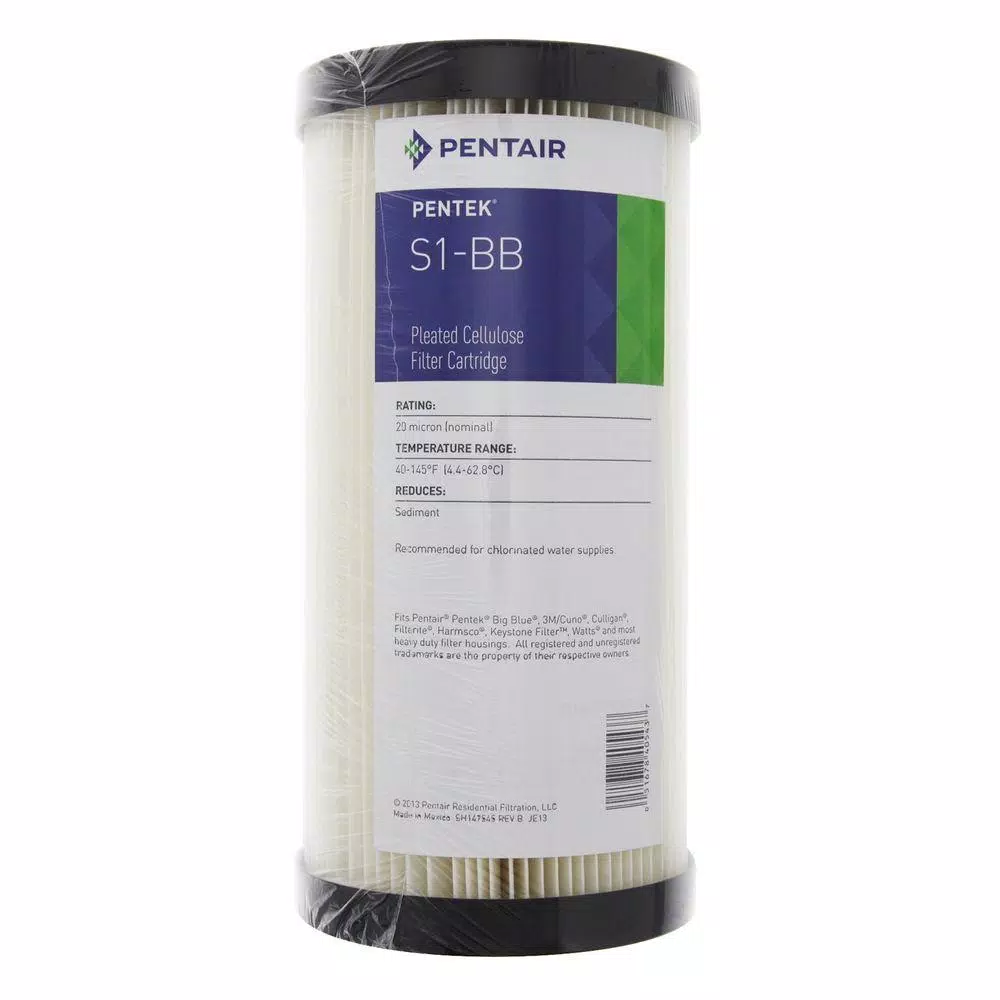

Replacement Water Filters Pentek S1-BB 9-3/4 In. X 4-1/2 In. Sediment Water Filter

This Pentek S1-BB pleated cellulose filter cartridge reduces dirt and sediments in general residential and commercial water filtration applications. It has a nominal filtration rating of 20 microns. The filter is made of resin-impregnated cellulose and polyester media pleated around a polypropylene core and sealed in plastisol to form a unified end cap for strength. It has an initial pressure drop of 1.2 psi at a flow rate of 10 GPM, and operates over a temperature range of 40 to 145°F (4.4 to 62.8°C). This pleated cellulose filter cartridge is for use in various applications, including drinking water purification, irrigation, and industrial processes, among others. Specifications Nominal filtration rating 20 microns initial pressure drop at 10 GPM 1.2 psi. Temperature range 40 to 145°F (4.4 to 62.8°C). Dimensions 9-3/4 in. x 4-1/2 in. / 248 mm x 114 mm (H x W) Surface area 2,070 sq. in. (1.34 sq. meter) Recommended flow rate 20 GPM.

• Replacement filter cartridge for sediment reduction in general filtration applications
• Nominal filtration rating of 20 micron
• Resin-impregnated cellulose filter media pleated around a polypropylene core and sealed in plastisol to form a unified end cap for strength
• Initial pressure drop of 1.2 psi at 10 GPM
• Temperature range of 40°F to 145°F (4.4°C to 62.8°C)
